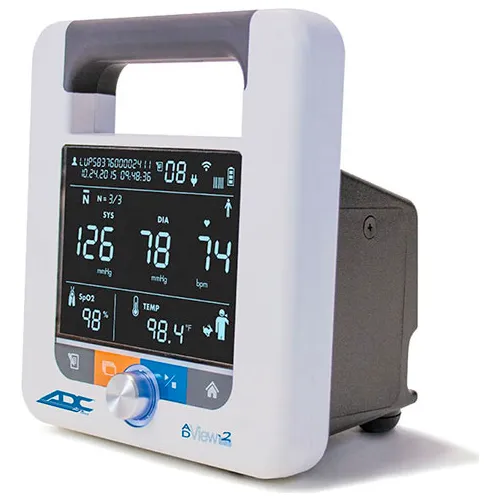

ADC® ADView® 2 Diagnostic Station, Blood Pressure Base Unit

Original price was: $1,315.00.Current price is: $1,049.00.

Warranty: 3 years on main unit, 1 year on Battery

SKU: BLD-ADC-01 Categories:
ADC® ADView® 2 Diagnostic Stat...

Original price was: $1,315.00.Current price is: $1,049.00.

The ADC® Adview® 2 easily captures automated blood pressure measurements at the touch of a button. Our non-invasive blood pressure base unit module uses the oscillometric method, with both pulse rate and the mean arterial blood pressure displayed in about 30 seconds. With seven available cuff sizes, ranging from child to thigh, the Adview® 2 can be used for patients ages three and older. Adult Plus and Large Adult Plus cuffs come standard.

Standard Features:

  • Clinical-grade Advantage™ BP technology from SunTech Medical
  • Customizable BP averaging
  • Manual mode for real-time BP verification
  • Pediatric mode for younger patients
  • Lithium-ion power for longer-lasting battery life and a lighter weight
  • Network enabled with HL7 messaging for electronic data transfer
  • Built-in memory with up to 99 charting sessions
  • LCD display with simple, easy-to-use design
  • LAN/Ethernet and two USB ports

BP Base Unit Includes:

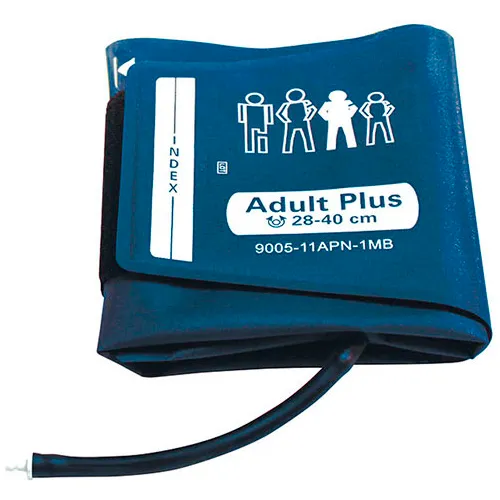

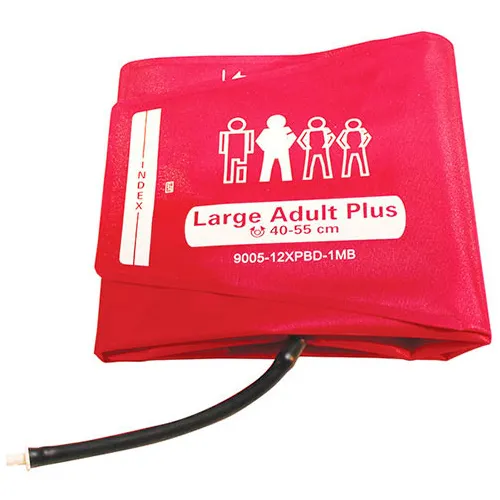

Rechargeable lithium-ion battery, U.S. power cord, 10-foot length of tubing, Adult Plus (28-40 cm) and Large Adult Plus (40-55 cm) cuffs, Mini USB to USB Cable, Quick Reference Guide & Quickstart Guide.

Weights & Dimensions

Size Adult Plus; Large Adult Plus
Cuff Circumference Adult Plus: 28-40 cm; Large Adult Plus: 40-55cm

Product Details

Memory 99 Charting Sessions
Type Vital Signs Monitor
Display Digital
Power Supply 100-240 VAC, 50-60 Hz
Operating Temperature 10°C to 40°C (50°F to 104°F)
Accuracy BP: (+/-)5mmHg Mean Error with 8mmHg Standard Deviation °F
Heart Rate Range 30-220 BPM
Mounting Location Desktop



Material Plastic Housing, Nylon Cuff
Blood Pressure Range Diastolic: 20-200 mmHg / Systolic: 40-260 mmHg (Adult)
Description AdView® 2 Blood Pressure Unit
Package Quantity 1
Manufacturers Part Number 9005BP
Batteries 7.2V, 6600mAh Internal Lithium-Ion Battery
Brand ADC
